BOOST CONTROL

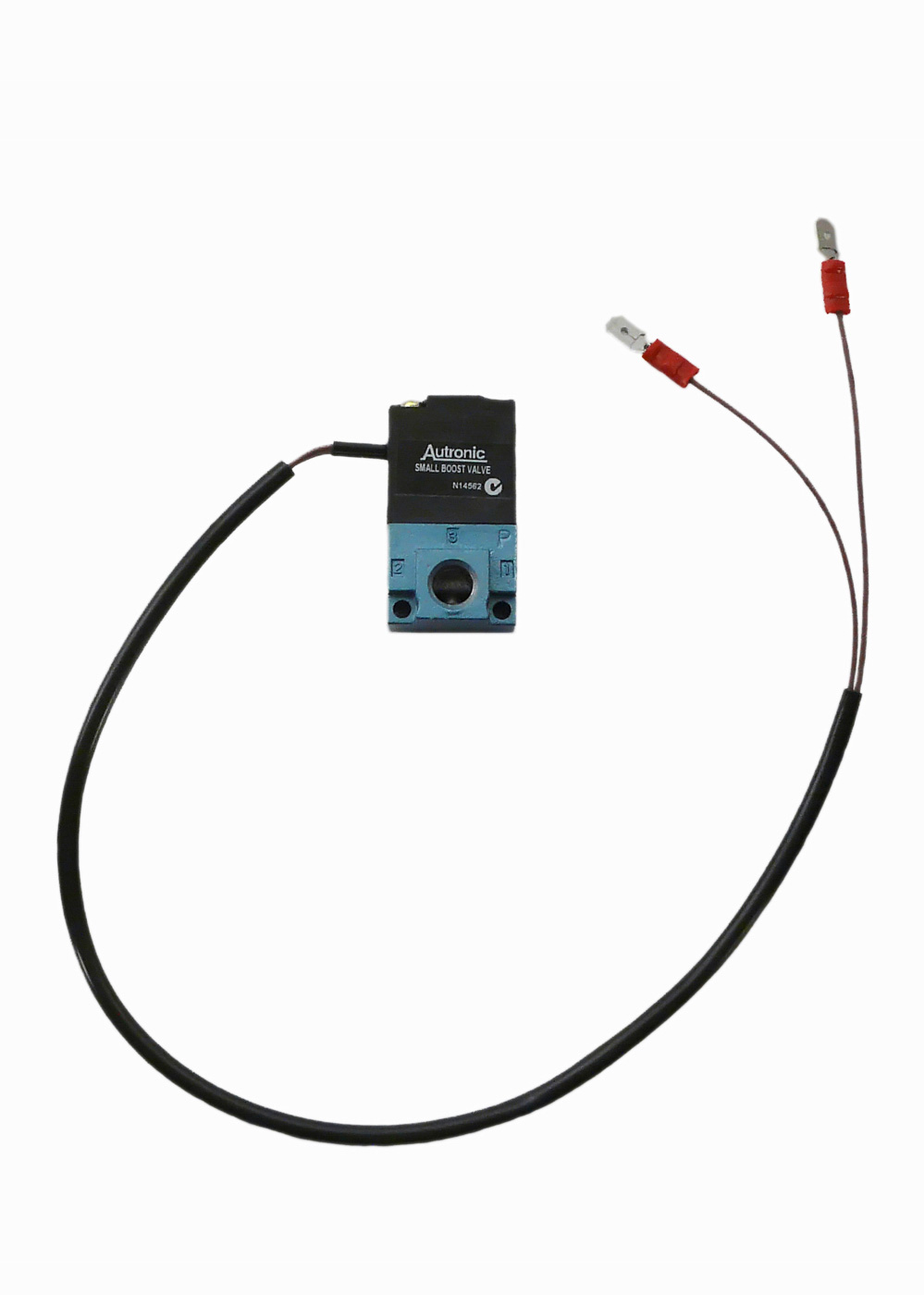

SMALL BOOST CONTROL VALVE
LARGE BOOST CONTROL VALVE
3 Port solenoid valves for pneumatic control of Turbocharger exhaust gas bypass, Supercharger bypass or variable inlet tuning flaps
| SPECIFICATIONS | |
| 3 Port solenoid valve suitable for control of a small or medium waste gate actuator | |
| Port fittings | 1/8" NPT |
| Flow rating | 0.18 Cv |
| Coil rating | 12 V DC 13 W |
| Dimensions (L * W * H) | 50 x 28.5 x 24 mm |
| Weight | 85g |
| Pulse width modulation frequency | 10 to 100 Hz (20 Hz recommended) |
| SPECIFICATIONS | |
| 3 Port solenoid valve suitable for 2 x small or 1 x medium to large waste gate actuator | |
| Port fittings | 1/8" NPT |
| Flow rating | 0.5 Cv |
| Coil rating | 12 V DC |
| Dimensions (L * W * H) | 99 x 45 x 45 |
| Weight | |
| Pulse width modulation frequency | 5 to 60 Hz (10 Hz recommended) |
