TEMPERATURE SENSORS
The Autronic Air Intake Temperature sensor is the prefered sensor for both naturally aspirated and forced induction engines. With its rugged glass encapsulated sensing element, it is impervious to moisture and the contaminants commonly found in induction systems. Many years of in-field experience have proven its long term reliability and stability. Its small sensing element reponds rapidly to the sudden temperature changes that are typical of forced induction engines.
This sensor is compatible with ALL Autronic engine management system ECUs.
This sensor is compatible with ALL Autronic engine management system ECUs.
AIR INTAKE TEMPERATURE SENSOR

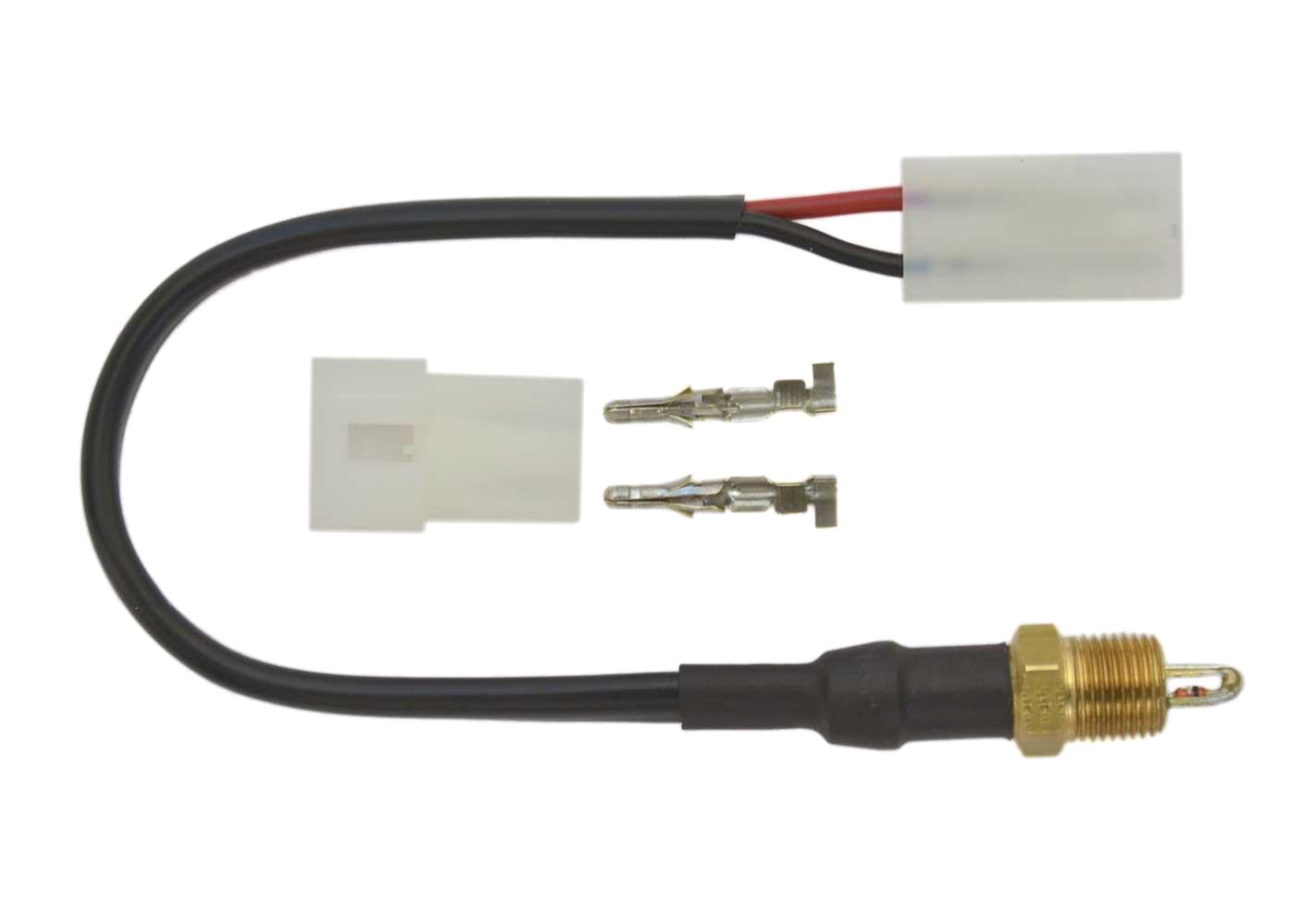

AUTRONIC MANIFOLD AIR INTAKE TEMPERATURE SENSOR (1/8" NPT)
| Specifications | |
| Measuring temperature range | -50 to +125 deg C |
| Accuracy | < +/- 2 deg C (0 to 50 deg C) < +/- 5 deg C (-50 to 125 deg C) |
| Response time | 20 Sec typical (in still air) |
| Resistance @ 25 deg C | 1000 Ω +/-1% |
| Thread | 1/8 " NPT |
| Weight | 20 gm |
| Lead length | 160 mm |
| Mating Connector | Molex 2 pin (Housing H9322, Terminals H9002) |
COOLANT TEMPERATURE SENSORS

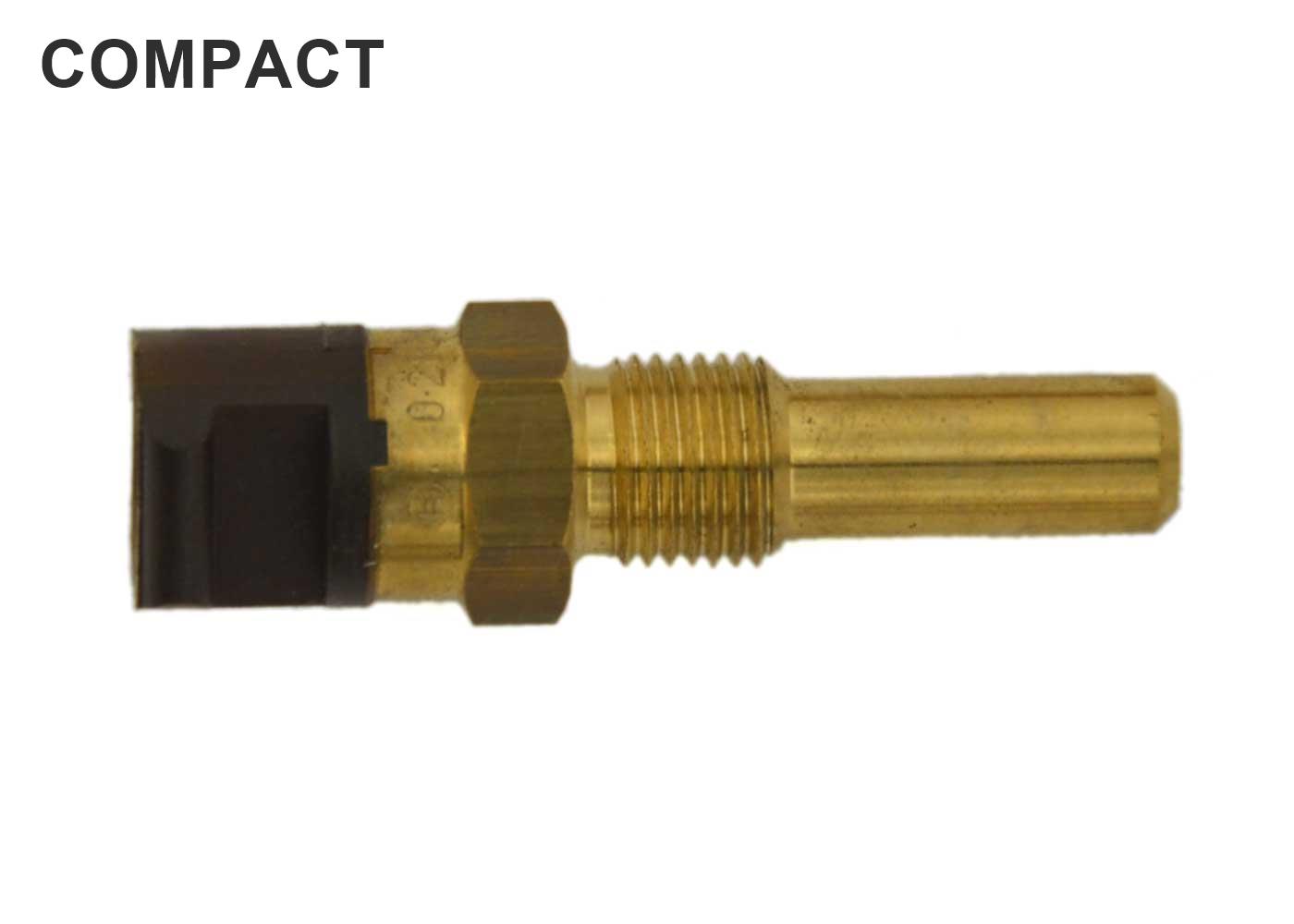

BOSCH COOLANT TEMPERATURE SENSOR (M10 x 1.0mm)

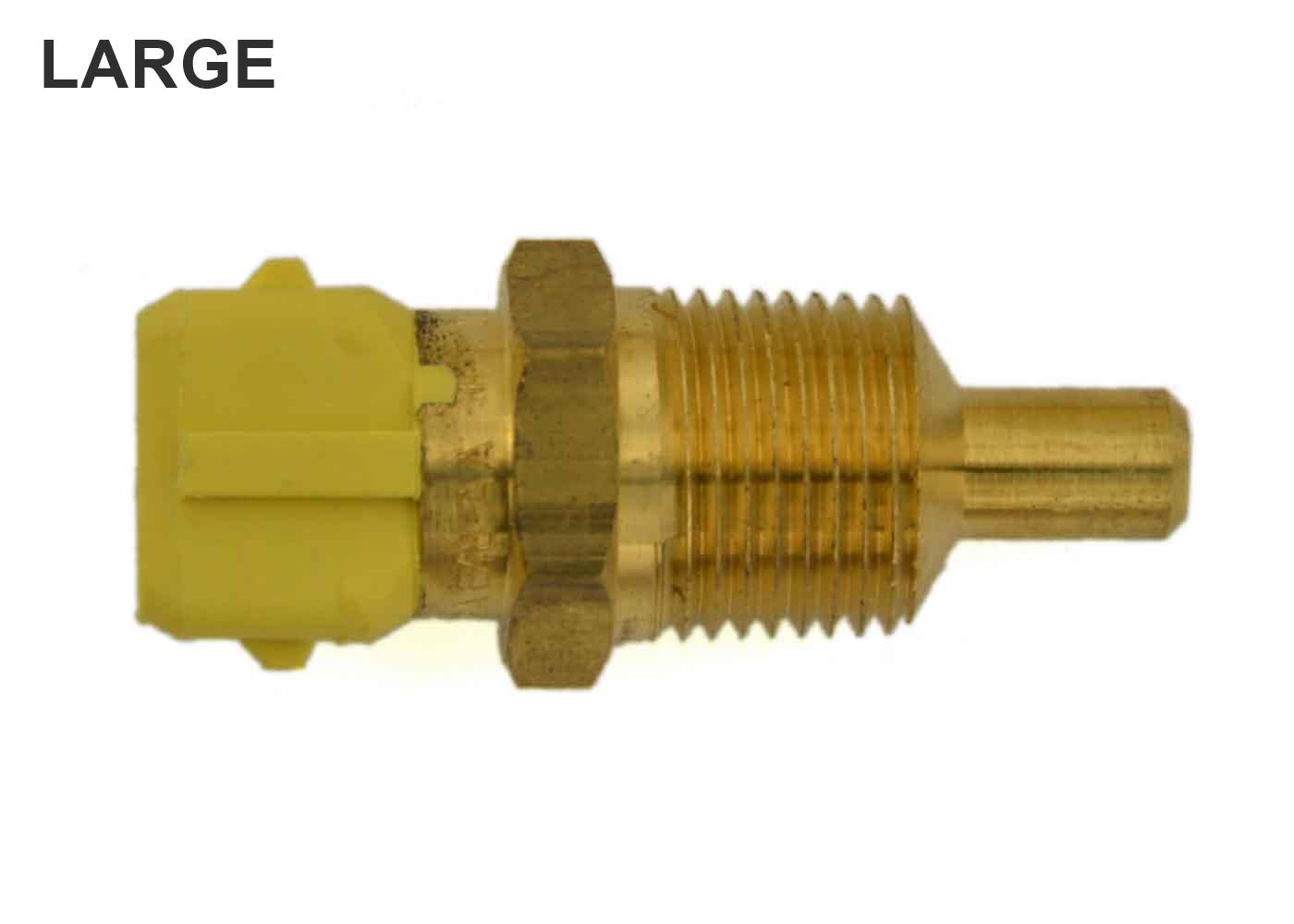

BOSCH COOLANT TEMPERATURE SENSOR (M12 x 1.5mm) Prefered
A range of Bosch coolant sensors with threads to suit many applications.
These sensors arre compatible with ALL Autronic engine management system ECUs.
UNSUITABLE FOR ENGINE OIL OR AIR-COOLED ENGINE CYLINDER HEAD TEMPERATURE MEASUREMENT
These sensors arre compatible with ALL Autronic engine management system ECUs.
UNSUITABLE FOR ENGINE OIL OR AIR-COOLED ENGINE CYLINDER HEAD TEMPERATURE MEASUREMENT
BOSCH COOLANT TEMPERATURE SENSOR (3/8" NPT)
| Specifications | |
| Measuring temperature range | -40 to +130 degC |
| Resistance @ 20 deg C | 2500 Ω |
| Max. Vibration | 600 m/s |
